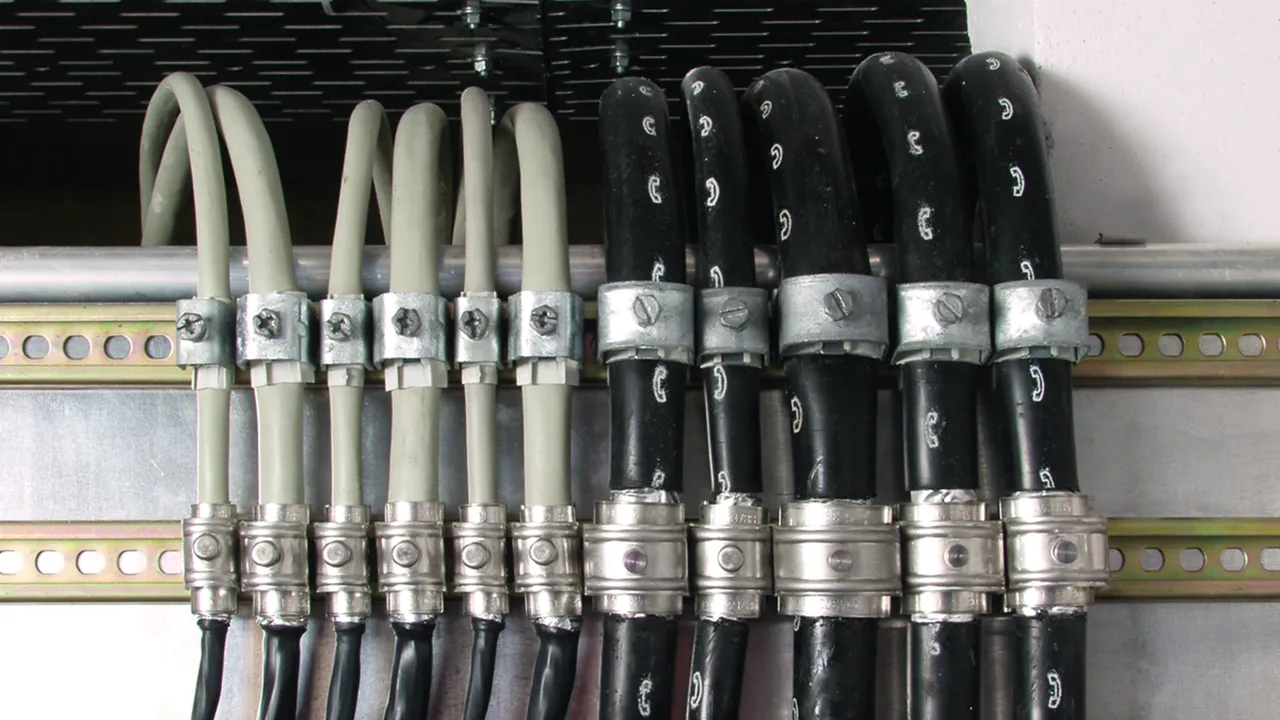

Connexion de blindage sur rail d'ancrage
:quality(98)/www.elvatec.ch/store/f/32121277/HDVORSCHAU/919010a1_16-9.jpg)
:quality(98)/www.elvatec.ch/store/f/32121277/HDVORSCHAU/919010a1_16-9.jpg)
- Testé avec un courant de foudre allant jusqu’à 10 kA (10/350 µs)
- Matériel en INOX résistant à la corrosion

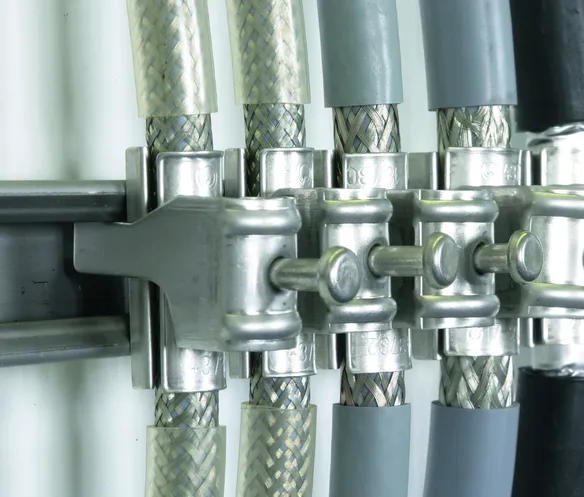

- Connexion continue du blindage grâce à un contact à ressort
Details
:quality(98)/www.elvatec.ch/store/f/32121278/HDVORSCHAU/308403a1_Kat.jpg)
:quality(98)/www.elvatec.ch/store/f/32121278/HDVORSCHAU/308403a1_Kat.jpg)

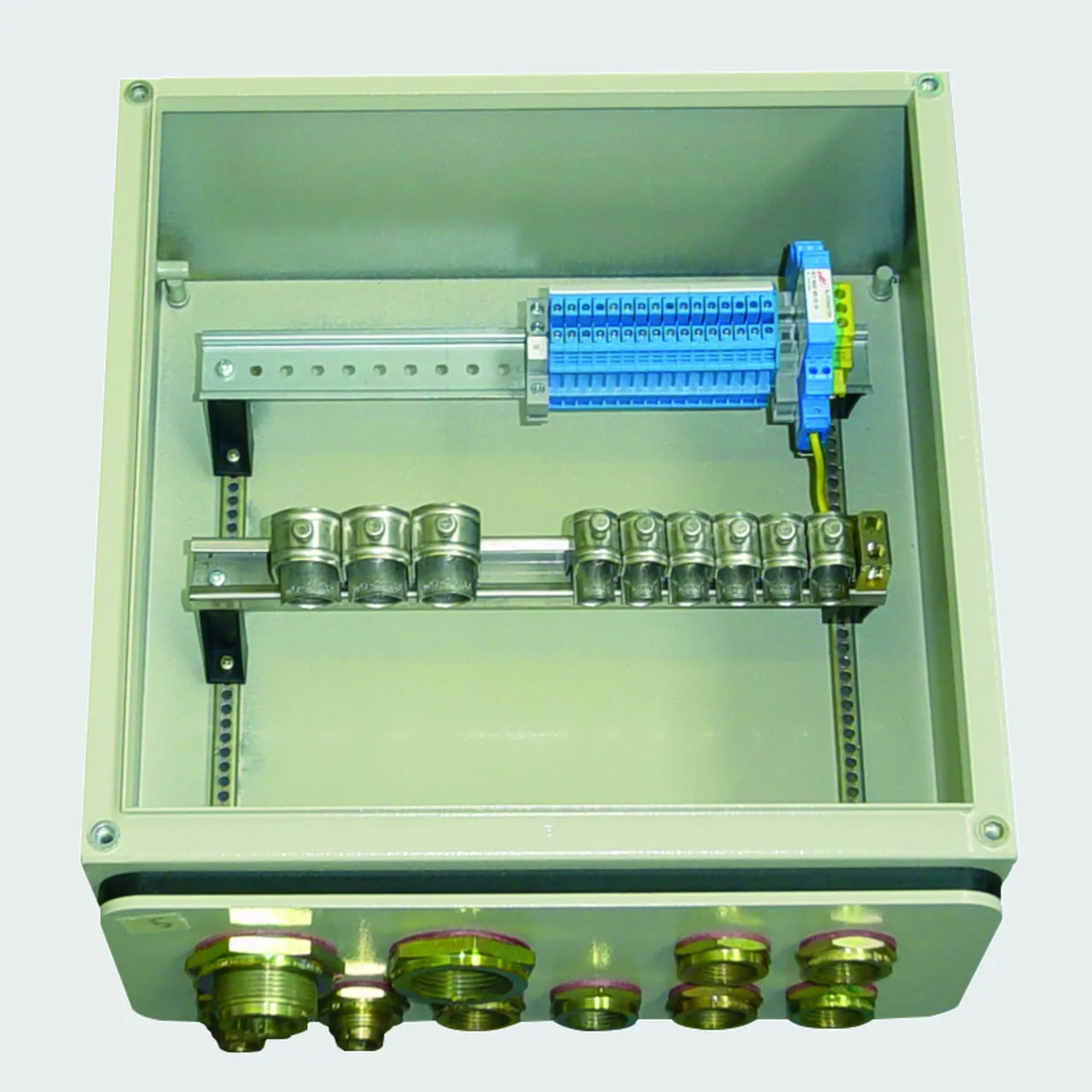

Bornes de connexion de blindage
Bornes de connexion pour la mise à la terre de blindages de câbles sur rail d'ancrage. Adaptés à l'équilibrage de potentiel dans la protection contre la foudre. Le montage ultérieur est possible sans interruption du blindage du conducteur, montage sans outillage.
6 Produkte

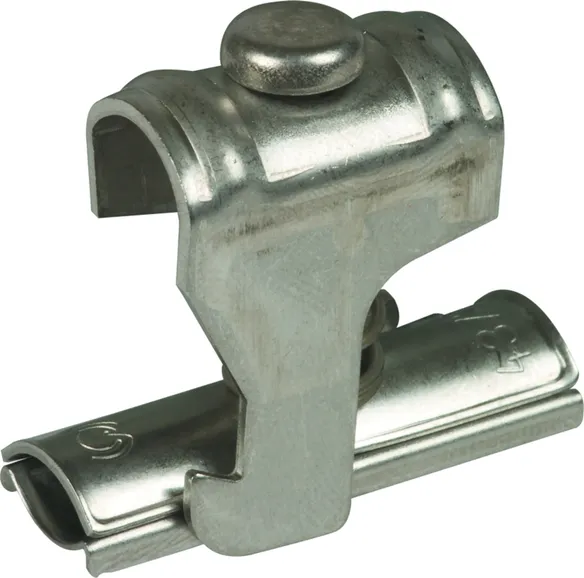

Art.-Nr. 308403 SAK 10 AS V4A
GTIN 4013364070509, Zolltarifnr. (EU): 85369095, Bruttogewicht: 26.00 g, VPE: 10.00 pièce(s)
Abbildungen
:quality(98)/www.elvatec.ch/store/f/32121284/HDVORSCHAU/308403.jpg)
:quality(98)/www.elvatec.ch/store/f/32121284/HDVORSCHAU/308403.jpg)
:quality(98)/www.elvatec.ch/store/f/32121285/HDVORSCHAU/308403a2.jpg)
:quality(98)/www.elvatec.ch/store/f/32121285/HDVORSCHAU/308403a2.jpg)
:quality(98)/www.elvatec.ch/store/f/32121286/HDVORSCHAU/308405m_D.jpg)
:quality(98)/www.elvatec.ch/store/f/32121286/HDVORSCHAU/308405m_D.jpg)
Technische Daten
| Résistance au courant de foudre (10/350 µs) | 10 kA |
| Plage de serrage (Rd) | 5-10 mm |
| Matériau | INOX |
| Montage sur | rail d'ancrage |

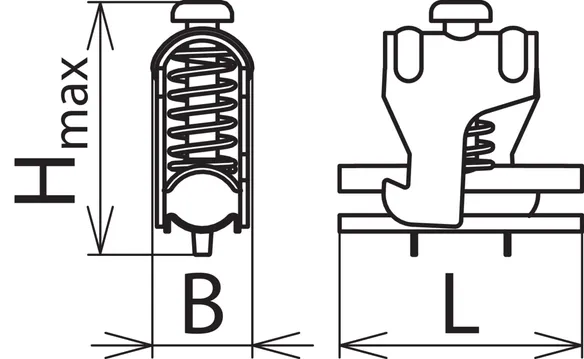

| Dimensions (l x h x p ) | 16 x 40 x 48 mm |
Art.-Nr. 308404 SAK 14 AS V4A
GTIN 4013364070516, Zolltarifnr. (EU): 85369095, Bruttogewicht: 31.70 g, VPE: 10.00 pièce(s)
Abbildungen
:quality(98)/www.elvatec.ch/store/f/32121289/HDVORSCHAU/308403.jpg)
:quality(98)/www.elvatec.ch/store/f/32121289/HDVORSCHAU/308403.jpg)
:quality(98)/www.elvatec.ch/store/f/32121290/HDVORSCHAU/308403a2.jpg)
:quality(98)/www.elvatec.ch/store/f/32121290/HDVORSCHAU/308403a2.jpg)
:quality(98)/www.elvatec.ch/store/f/32121291/HDVORSCHAU/308405m_D.jpg)
:quality(98)/www.elvatec.ch/store/f/32121291/HDVORSCHAU/308405m_D.jpg)
Technische Daten
| Résistance au courant de foudre (10/350 µs) | 10 kA |
| Plage de serrage (Rd) | 8-14 mm |
| Matériau | INOX |
| Montage sur | rail d'ancrage |
| Dimensions (l x h x p ) | 19,5 x 40 x 50 mm |
Art.-Nr. 308405 SAK 18 AS V4A
GTIN 4013364070523, Zolltarifnr. (EU): 85369095, Bruttogewicht: 37.40 g, VPE: 10.00 pièce(s)
Abbildungen
:quality(98)/www.elvatec.ch/store/f/32121294/HDVORSCHAU/308403.jpg)
:quality(98)/www.elvatec.ch/store/f/32121294/HDVORSCHAU/308403.jpg)
:quality(98)/www.elvatec.ch/store/f/32121295/HDVORSCHAU/308403a2.jpg)
:quality(98)/www.elvatec.ch/store/f/32121295/HDVORSCHAU/308403a2.jpg)
:quality(98)/www.elvatec.ch/store/f/32121296/HDVORSCHAU/308405m_D.jpg)
:quality(98)/www.elvatec.ch/store/f/32121296/HDVORSCHAU/308405m_D.jpg)
Technische Daten
| Résistance au courant de foudre (10/350 µs) | 10 kA |
| Plage de serrage (Rd) | 13-18 mm |
| Matériau | INOX |
| Montage sur | rail d'ancrage |
| Dimensions (l x h x p ) | 24 x 40 x 56 mm |
Art.-Nr. 308406 SAK 21 AS V4A
GTIN 4013364070530, Zolltarifnr. (EU): 85369095, Bruttogewicht: 48.80 g, VPE: 10.00 pièce(s)
Abbildungen
:quality(98)/www.elvatec.ch/store/f/32121299/HDVORSCHAU/308403.jpg)
:quality(98)/www.elvatec.ch/store/f/32121299/HDVORSCHAU/308403.jpg)
:quality(98)/www.elvatec.ch/store/f/32121300/HDVORSCHAU/308403a2.jpg)
:quality(98)/www.elvatec.ch/store/f/32121300/HDVORSCHAU/308403a2.jpg)
:quality(98)/www.elvatec.ch/store/f/32121301/HDVORSCHAU/308405m_D.jpg)
:quality(98)/www.elvatec.ch/store/f/32121301/HDVORSCHAU/308405m_D.jpg)
Technische Daten
| Résistance au courant de foudre (10/350 µs) | 10 kA |
| Plage de serrage (Rd) | 17-21 mm |
| Matériau | INOX |
| Montage sur | rail d'ancrage |
| Dimensions (l x h x p ) | 29 x 40 x 59 mm |
Art.-Nr. 308407 SAK 26 AS V4A
GTIN 4013364070547, Zolltarifnr. (EU): 85369095, Bruttogewicht: 60.40 g, VPE: 10.00 pièce(s)
Abbildungen
:quality(98)/www.elvatec.ch/store/f/32121304/HDVORSCHAU/308403.jpg)
:quality(98)/www.elvatec.ch/store/f/32121304/HDVORSCHAU/308403.jpg)
:quality(98)/www.elvatec.ch/store/f/32121305/HDVORSCHAU/308403a2.jpg)
:quality(98)/www.elvatec.ch/store/f/32121305/HDVORSCHAU/308403a2.jpg)
:quality(98)/www.elvatec.ch/store/f/32121306/HDVORSCHAU/308405m_D.jpg)
:quality(98)/www.elvatec.ch/store/f/32121306/HDVORSCHAU/308405m_D.jpg)
Technische Daten
| Résistance au courant de foudre (10/350 µs) | 10 kA |
| Plage de serrage (Rd) | 19-26 mm |
| Matériau | INOX |
| Montage sur | rail d'ancrage |
| Dimensions (l x h x p ) | 36,5 x 40 x 74 mm |
Art.-Nr. 308408 SAK 33 AS V4A
GTIN 4013364070554, Zolltarifnr. (EU): 85369095, Bruttogewicht: 72.90 g, VPE: 10.00 pièce(s)
Abbildungen
:quality(98)/www.elvatec.ch/store/f/32121309/HDVORSCHAU/308403.jpg)
:quality(98)/www.elvatec.ch/store/f/32121309/HDVORSCHAU/308403.jpg)
:quality(98)/www.elvatec.ch/store/f/32121310/HDVORSCHAU/308403a2.jpg)
:quality(98)/www.elvatec.ch/store/f/32121310/HDVORSCHAU/308403a2.jpg)
:quality(98)/www.elvatec.ch/store/f/32121311/HDVORSCHAU/308405m_D.jpg)
:quality(98)/www.elvatec.ch/store/f/32121311/HDVORSCHAU/308405m_D.jpg)
Technische Daten
| Résistance au courant de foudre (10/350 µs) | 10 kA |
| Plage de serrage (Rd) | 25-33 mm |
| Matériau | INOX |
| Montage sur | rail d'ancrage |
| Dimensions (l x h x p ) | 45 x 40 x 82 mm |

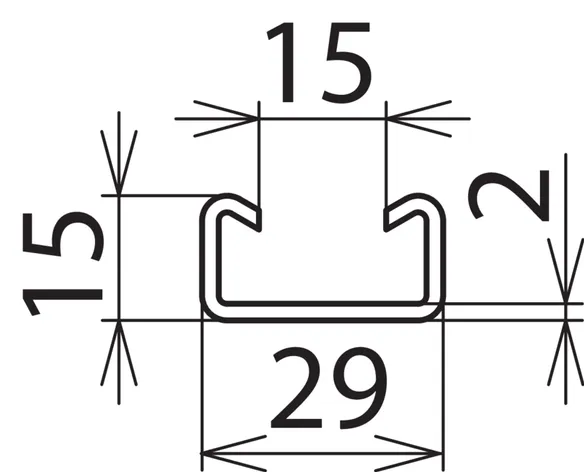

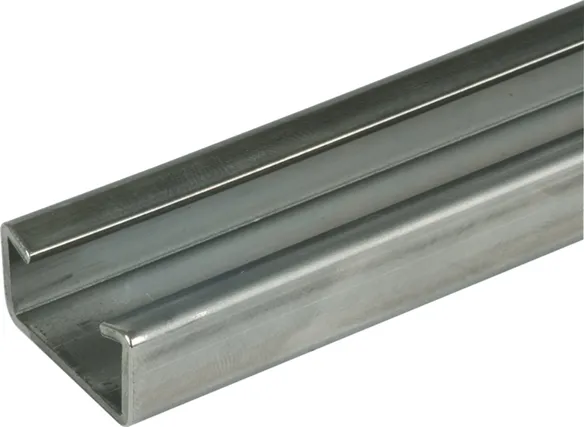

Art.-Nr. 308421 AS SAK 1000 V2A
GTIN 4013364070561, Zolltarifnr. (EU): 72224090, Bruttogewicht: 974.00 g, VPE: 10.00 pièce(s)
:quality(98)/www.elvatec.ch/store/f/32121317/HDVORSCHAU/308421.jpg)
:quality(98)/www.elvatec.ch/store/f/32121317/HDVORSCHAU/308421.jpg)

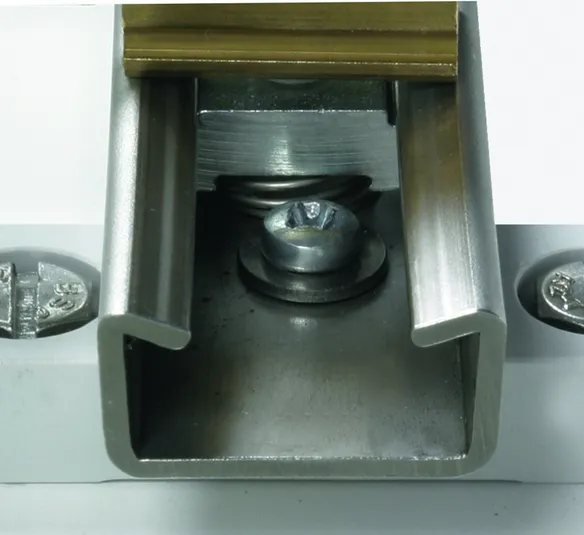

:quality(98)/www.elvatec.ch/store/f/32121318/HDVORSCHAU/308421a1.jpg)
:quality(98)/www.elvatec.ch/store/f/32121318/HDVORSCHAU/308421a1.jpg)
:quality(98)/www.elvatec.ch/store/f/32121319/HDVORSCHAU/308421m_D.jpg)
:quality(98)/www.elvatec.ch/store/f/32121319/HDVORSCHAU/308421m_D.jpg)

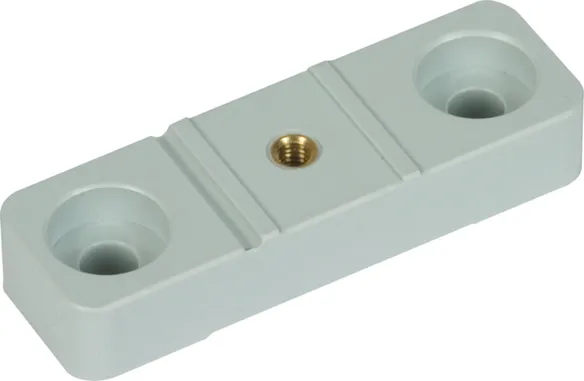

Art.-Nr. 308425 ST AS SAK K
GTIN 4013364058798, Zolltarifnr. (EU): 39269097, Bruttogewicht: 19.30 g, VPE: 10.00 pièce(s)
:quality(98)/www.elvatec.ch/store/f/32121325/HDVORSCHAU/308425.jpg)
:quality(98)/www.elvatec.ch/store/f/32121325/HDVORSCHAU/308425.jpg)

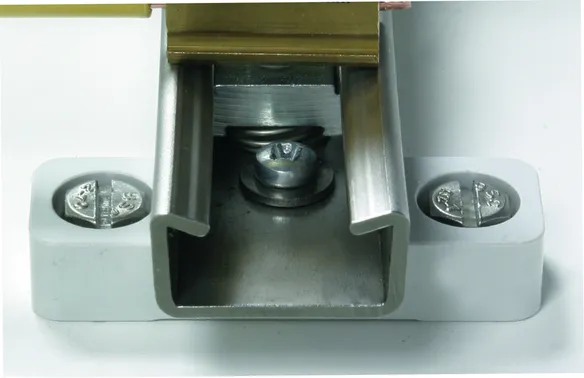

:quality(98)/www.elvatec.ch/store/f/32121326/HDVORSCHAU/308425a1.jpg)
:quality(98)/www.elvatec.ch/store/f/32121326/HDVORSCHAU/308425a1.jpg)
:quality(98)/www.elvatec.ch/store/f/32121327/HDVORSCHAU/308425m_D.jpg)
:quality(98)/www.elvatec.ch/store/f/32121327/HDVORSCHAU/308425m_D.jpg)

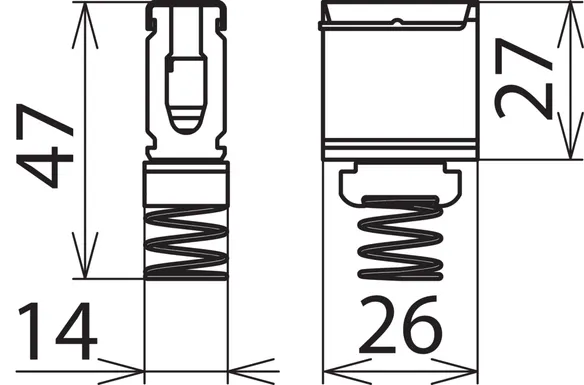

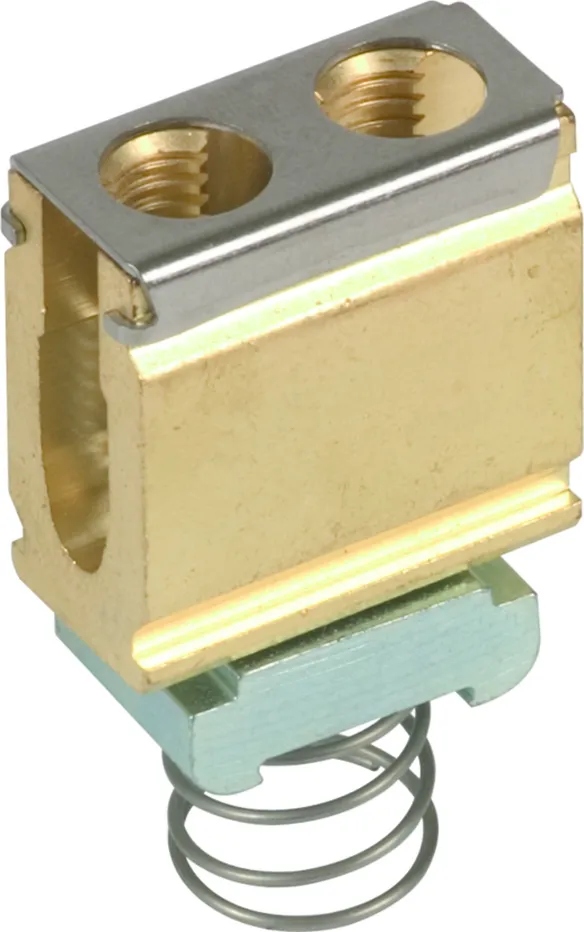

Art.-Nr. 308411 AK 16 AS SAK MS
GTIN 4013364070578, Zolltarifnr. (EU): 85369095, Bruttogewicht: 55.60 g, VPE: 5.00 pièce(s)
Abbildungen
:quality(98)/www.elvatec.ch/store/f/32121333/HDVORSCHAU/308411.jpg)
:quality(98)/www.elvatec.ch/store/f/32121333/HDVORSCHAU/308411.jpg)

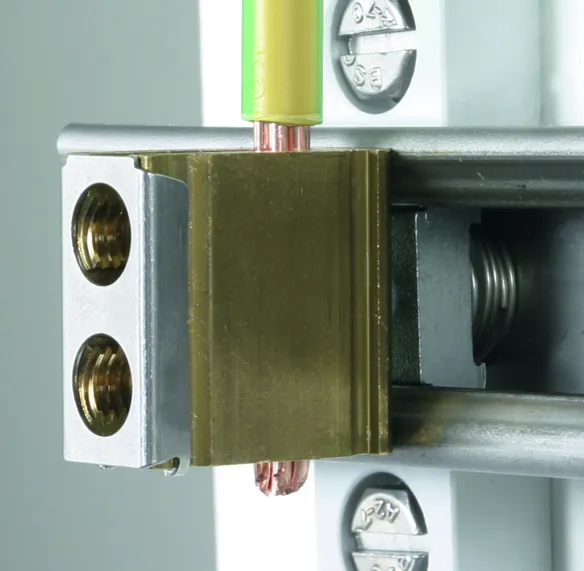

:quality(98)/www.elvatec.ch/store/f/32121334/HDVORSCHAU/308411a1.jpg)
:quality(98)/www.elvatec.ch/store/f/32121334/HDVORSCHAU/308411a1.jpg)
:quality(98)/www.elvatec.ch/store/f/32121335/HDVORSCHAU/308411m_D.jpg)
:quality(98)/www.elvatec.ch/store/f/32121335/HDVORSCHAU/308411m_D.jpg)
Technische Daten
| Section de raccordement rigide | 16 mm2 |
| Montage sur | rail d'ancrage |
