Two-pole SPN voltage detector for the electrical trade and industry
:quality(98)/www.elvatec.ch/store/f/63099057/HDVORSCHAU/Familienbild_A_DUSPOL%20digital.jpg)
:quality(98)/www.elvatec.ch/store/f/63099057/HDVORSCHAU/Familienbild_A_DUSPOL%20digital.jpg)
- Direct display system with low stress on the test point
- Switchable vibration motor

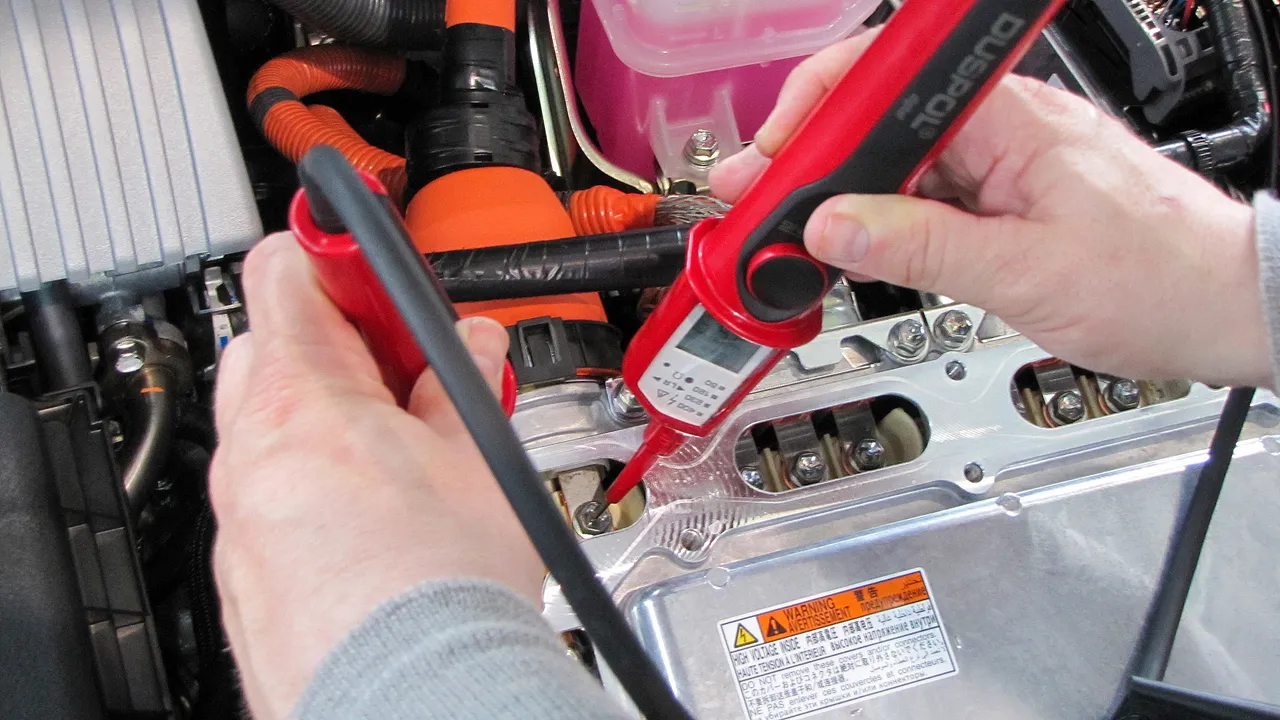

- Ideal for voltage testing on photovoltaic and wind power plants; on hybrid vehicles; on high system voltages in industry; in service and in trades
Art.-Nr. 700100 SPN 1000 A
GTIN 4013364500280, Zolltarifnr. (EU): 90303370, Bruttogewicht: 371.84 g, VPE: 1.00 pc(s)
Abbildungen
:quality(98)/www.elvatec.ch/store/f/63099063/HDVORSCHAU/700100.jpg)
:quality(98)/www.elvatec.ch/store/f/63099063/HDVORSCHAU/700100.jpg)
Zertifikate
Technische Daten
| Indicator | Plunger coil (illuminated)/LED |
| Voltage range | 12 V – 1000 V AC/DC |
| Frequency measurement range | – |
| Acoustic and visual continuity test | – |
| Diode test | – |
| Resistance measuring range | – |
| Rotating field test | LCD (R icon) |
| Single-pole line conductor test (phase) | LCD (R icon) |
| Polarity test | LED (+/-) |
| Cable break detector | – |
| Load switching via pushbutton | IS = 550 mA (1000 V) 30 mA RCD trip |
| Vibration alarm | yes |
| Measuring point lighting | – |
Art.-Nr. 700102 SPN 1200 D
GTIN 4013364500297, Zolltarifnr. (EU): 90303370, Bruttogewicht: 400.25 g, VPE: 1.00 pc(s)
Abbildungen
:quality(98)/www.elvatec.ch/store/f/63099069/HDVORSCHAU/700102.jpg)
:quality(98)/www.elvatec.ch/store/f/63099069/HDVORSCHAU/700102.jpg)
Zertifikate
Technische Daten
| Indicator | LED/LCD (lights up) |
| Voltage range | 1.0 V – 1000 V AC / 1200 V DC |
| Frequency measurement range | 1 – 1000 Hz |
| Acoustic and visual continuity test | Buzzer + yellow LED 0 – 100 kΩ |
| Diode test | 0.3 – 2.0 V |
| Resistance measuring range | 0.1 kΩ – 300 kΩ |
| Rotating field test | Green LEDs (right/left) |
| Single-pole line conductor test (phase) | Red "flash" LED |
| Polarity test | LCD (+/-) |
| Cable break detector | Yellow LED (flashing) |
| Load switching via pushbutton | IS = 550 mA (1000 V) 30 mA RCD trip |
| Vibration alarm | yes |
| Measuring point lighting | White LED |
