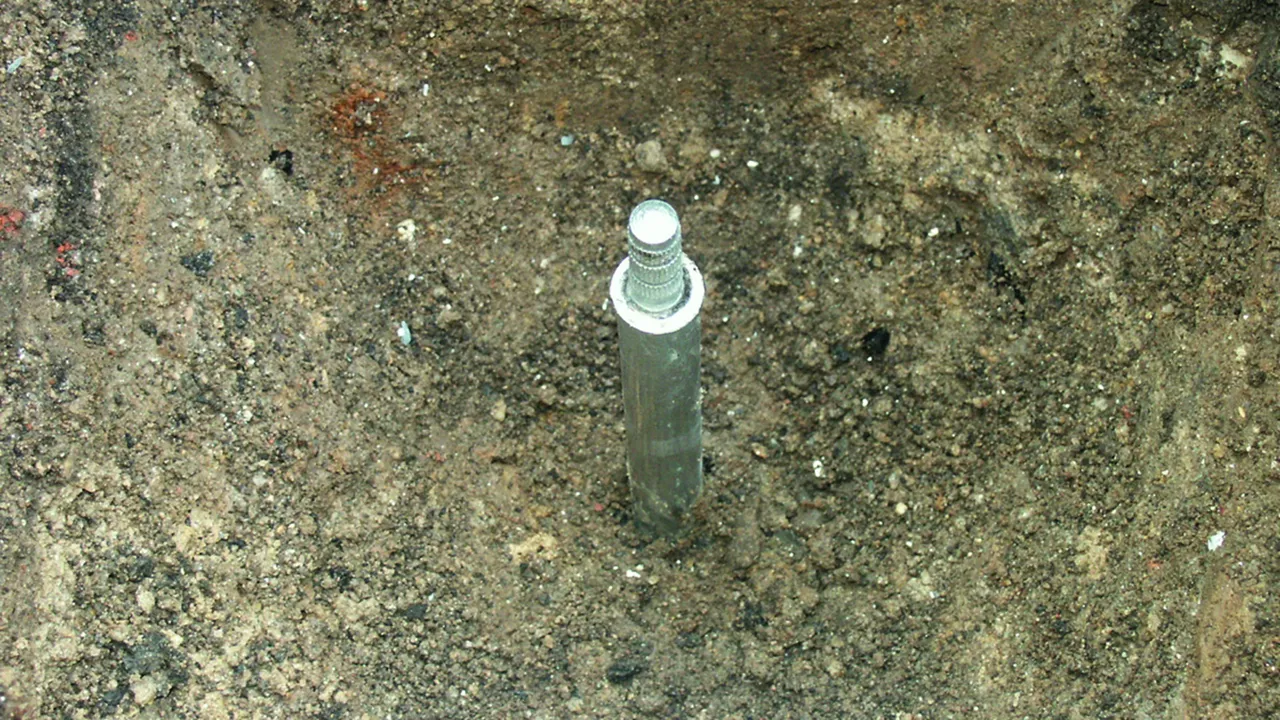

Earth Rods
:quality(98)/www.elvatec.ch/store/f/63870891/HDVORSCHAU/620150a1_16-9.jpg)
:quality(98)/www.elvatec.ch/store/f/63870891/HDVORSCHAU/620150a1_16-9.jpg)
- No thickening of the cross-section at the coupling joint
- Self-locking coupling
- Corrosion resistance
- Easier storage and transport
- Universal use according to local soil conditions
- Constant resistance values
- Easily driven in with a vibration hammer
Details
:quality(98)/www.elvatec.ch/store/f/63870893/HDVORSCHAU/Hammereinsaetze_Auswahlhilfe_EN.jpg)
:quality(98)/www.elvatec.ch/store/f/63870893/HDVORSCHAU/Hammereinsaetze_Auswahlhilfe_EN.jpg)
:quality(98)/www.elvatec.ch/store/f/63870892/HDVORSCHAU/600050a1_16-9.jpg)
:quality(98)/www.elvatec.ch/store/f/63870892/HDVORSCHAU/600050a1_16-9.jpg)
Art.-Nr. 620101 TE 20 1000 Z STTZN
GTIN 4013364021860, Zolltarifnr. (EU): 85389099, Bruttogewicht: 2.50 kg, VPE: 6.00 pc(s)
:quality(98)/www.elvatec.ch/store/f/63870904/HDVORSCHAU/620151_oben.jpg)
:quality(98)/www.elvatec.ch/store/f/63870904/HDVORSCHAU/620151_oben.jpg)
:quality(98)/www.elvatec.ch/store/f/63870905/HDVORSCHAU/620101m_D.jpg)
:quality(98)/www.elvatec.ch/store/f/63870905/HDVORSCHAU/620101m_D.jpg)
Technische Daten
| Material | St/tZn |
| Rod length (l1) | 1000 mm |
| Diameter Ø (d1) | 20 mm |
| Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) | 7.9 kA |
| Standard | EN 62561-2 |
Art.-Nr. 620151 TE 20 1500 Z STTZN
GTIN 4013364021846, Zolltarifnr. (EU): 85389099, Bruttogewicht: 3.70 kg, VPE: 6.00 pc(s)
Vorgänger:quality(98)/www.elvatec.ch/store/f/63870914/HDVORSCHAU/620151_oben.jpg)
:quality(98)/www.elvatec.ch/store/f/63870914/HDVORSCHAU/620151_oben.jpg)
:quality(98)/www.elvatec.ch/store/f/63870915/HDVORSCHAU/620101m_D.jpg)
:quality(98)/www.elvatec.ch/store/f/63870915/HDVORSCHAU/620101m_D.jpg)
Technische Daten
| Material | St/tZn |
| Rod length (l1) | 1500 mm |
| Diameter Ø (d1) | 20 mm |
| Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) | 7.9 kA |
| Standard | EN 62561-2 |
Art.-Nr. 625101 TE 25 1000 Z STTZN
GTIN 4013364021877, Zolltarifnr. (EU): 85389099, Bruttogewicht: 3.72 kg, VPE: 6.00 pc(s)
:quality(98)/www.elvatec.ch/store/f/63870923/HDVORSCHAU/620151_oben.jpg)
:quality(98)/www.elvatec.ch/store/f/63870923/HDVORSCHAU/620151_oben.jpg)
:quality(98)/www.elvatec.ch/store/f/63870924/HDVORSCHAU/620101m_D.jpg)
:quality(98)/www.elvatec.ch/store/f/63870924/HDVORSCHAU/620101m_D.jpg)
Technische Daten
| Material | St/tZn |
| Rod length (l1) | 1000 mm |
| Diameter Ø (d1) | 25 mm |
| Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) | 12.3 kA |
| Standard | EN 62561-2 |
Art.-Nr. 625151 TE 25 1500 Z STTZN
GTIN 4013364021853, Zolltarifnr. (EU): 85389099, Bruttogewicht: 5.72 kg, VPE: 6.00 pc(s)
Vorgänger:quality(98)/www.elvatec.ch/store/f/63870934/HDVORSCHAU/620151_oben.jpg)
:quality(98)/www.elvatec.ch/store/f/63870934/HDVORSCHAU/620151_oben.jpg)
:quality(98)/www.elvatec.ch/store/f/63870935/HDVORSCHAU/620101m_D.jpg)
:quality(98)/www.elvatec.ch/store/f/63870935/HDVORSCHAU/620101m_D.jpg)
Technische Daten
| Material | St/tZn |
| Rod length (l1) | 1500 mm |
| Diameter Ø (d1) | 25 mm |
| Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) | 12.3 kA |
| Standard | EN 62561-2 |
Art.-Nr. 620903 TE 20 1000 AZ V4A
GTIN 4013364342859, Zolltarifnr. (EU): 85389099, Bruttogewicht: 2.43 kg, VPE: 6.00 pc(s)
:quality(98)/www.elvatec.ch/store/f/63870945/HDVORSCHAU/620902_oben.jpg)
:quality(98)/www.elvatec.ch/store/f/63870945/HDVORSCHAU/620902_oben.jpg)
:quality(98)/www.elvatec.ch/store/f/63870946/HDVORSCHAU/620903m_D.jpg)
:quality(98)/www.elvatec.ch/store/f/63870946/HDVORSCHAU/620903m_D.jpg)
Technische Daten
| Material | StSt (V4A) |
| Material No. | 1.4571 / 1.4404 / 1.4401 |
| Rod length (l1) | 1000 mm |
| Diameter Ø (d1) | 20 mm |
| Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) | 4.2 kA |
| Standard | EN 62561-2 |
Art.-Nr. 620902 TE 20 1500 AZ V4A
GTIN 4013364021914, Zolltarifnr. (EU): 85389099, Bruttogewicht: 3.67 kg, VPE: 6.00 pc(s)
:quality(98)/www.elvatec.ch/store/f/63870954/HDVORSCHAU/620902_oben.jpg)
:quality(98)/www.elvatec.ch/store/f/63870954/HDVORSCHAU/620902_oben.jpg)
:quality(98)/www.elvatec.ch/store/f/63870955/HDVORSCHAU/620902m_D.jpg)
:quality(98)/www.elvatec.ch/store/f/63870955/HDVORSCHAU/620902m_D.jpg)
Technische Daten
| Material | StSt (V4A) |
| Material No. | 1.4571 / 1.4404 / 1.4401 |
| Rod length (l1) | 1500 mm |
| Diameter Ø (d1) | 20 mm |
| Short-circuit current (AC 50 Hz / DC) (1 s; ≤ 300 °C) | 4.2 kA |
| Standard | EN 62561-2 |
Art.-Nr. D18014 D18014 5XTE D20 1XAK 8.10 1XSSP
GTIN 4013364557741, Zolltarifnr. (EU): 85359000, Bruttogewicht: 12.25 kg, VPE: 1.00 pc(s)
Abbildungen
:quality(98)/www.elvatec.ch/store/f/63870960/HDVORSCHAU/D18014.jpg)
:quality(98)/www.elvatec.ch/store/f/63870960/HDVORSCHAU/D18014.jpg)
:quality(98)/www.elvatec.ch/store/f/63870961/HDVORSCHAU/D18014.jpg)
:quality(98)/www.elvatec.ch/store/f/63870961/HDVORSCHAU/D18014.jpg)
Technische Daten
| Material (Earth rod) | StSt (V4A) |
| Material No. (Earth rod) | 1.4571 / 1.4404 / 1.4401 |
| ASTM / AISI: (Earth rod) | 316Ti / 316L / 316 |
| Rod length (Earth rod) | 1000 mm |
| Diameter Ø (Earth rod) | 20 mm |
| Pin diameter (Earth rod) | 10 / 13 mm |
| Tensile strength (Earth rod) | 500-730 N/mm2 |
| Conductivity (Earth rod) | ≤ 1.25 m/Ohm mm2 |
| Resistivity (Earth rod) | ≤ 0.8 Ohm mm2 / m |
| Short-circuit current (AC 50 Hz / DC) (Earth rod) (1 s; ≤ 300°C) | 4.2 kA |
| Standard (Earth rod) | DIN EN 62561-2 |
| - | - |
| Material (Connection clamp) | StSt (V4A) |
| Material No. (Connection clamp) | 1.4571 / 1.4404 / 1.4401 |
| ASTM / AISI: (Connection clamp) | 316Ti / 316L / 316 |
| For earth rods Ø (Connection clamp) | 20-25 mm |
| Clamping range Rd (Connection clamp) | 8-10 mm |
| Connection (solid/stranded) (Connection clamp) | 4-50 mm2 |
| Screw (Connection clamp) | di M8 x 20 / 25 mm |
| Lightning current carrying capability (10/350 µs) (Connection clamp) | = *) |
| Standard (Connection clamp) | DIN EN 62561-1 |
| -- | -- |
| Material (Driving spike) | MCI/HDG |
| Version (Driving spike) | for earth rod Ø20 mm. |
| Dimensions (Driving spike) | 20 x 40 mm |
