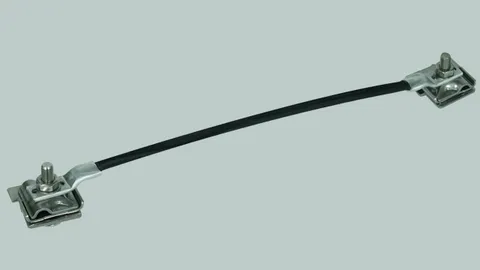

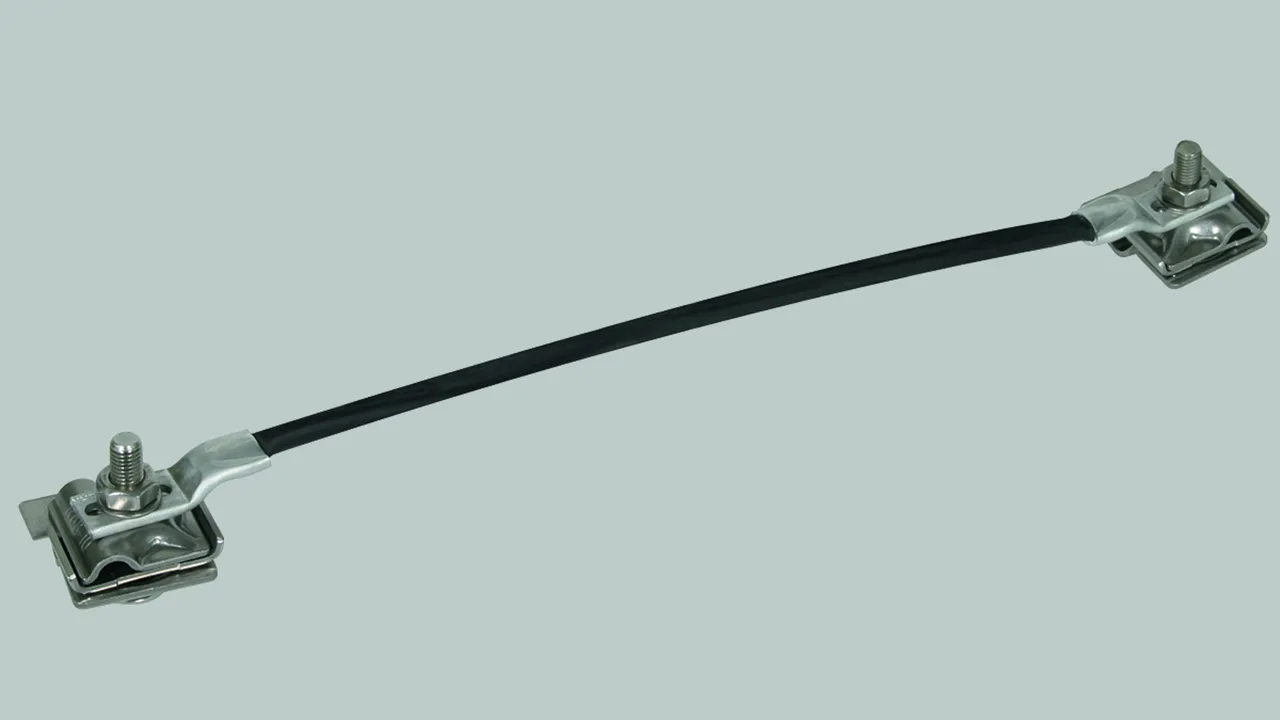

Bridging Cable with Seam Clamps
:quality(98)/www.elvatec.ch/store/f/63105684/HDVORSCHAU/365419_16-9.jpg)
:quality(98)/www.elvatec.ch/store/f/63105684/HDVORSCHAU/365419_16-9.jpg)
For connecting or bridging metal cladding (e.g. parts of the capping of the roof parapet) without drilling
- With one clamping plate each, e.g. for connection to the air-termination system and erection of air-termination tips (Rd 8-10 mm)
- For the seams of the capping of the roof parapet with an angle of 0-45° and a max. length up to 18 mm
Art.-Nr. 365419 UEBS 16 L400 CU FK0.7 10 V2A
GTIN 4013364128927, Zolltarifnr. (EU): 85359000, Bruttogewicht: 457.50 g, VPE: 5.00 pc(s)
:quality(98)/www.elvatec.ch/store/f/63105696/HDVORSCHAU/365419.jpg)
:quality(98)/www.elvatec.ch/store/f/63105696/HDVORSCHAU/365419.jpg)
:quality(98)/www.elvatec.ch/store/f/63105697/HDVORSCHAU/365419m_D.jpg)
:quality(98)/www.elvatec.ch/store/f/63105697/HDVORSCHAU/365419m_D.jpg)
Technische Daten
| Clamping range of seam | 0.7-10 mm |
| Material of seam clamps | StSt |
| Length | 200 mm |
| Material of cable | Cu |
| Cross-section | 16 mm2 |
| Standard | EN 62561-1 |
| *) For exact assignment, see test certificate. | |
