UNI Saddle Clamp
:quality(98)/www.elvatec.ch/store/f/63124953/HDVORSCHAU/365250a2_16-9.jpg)
:quality(98)/www.elvatec.ch/store/f/63124953/HDVORSCHAU/365250a2_16-9.jpg)

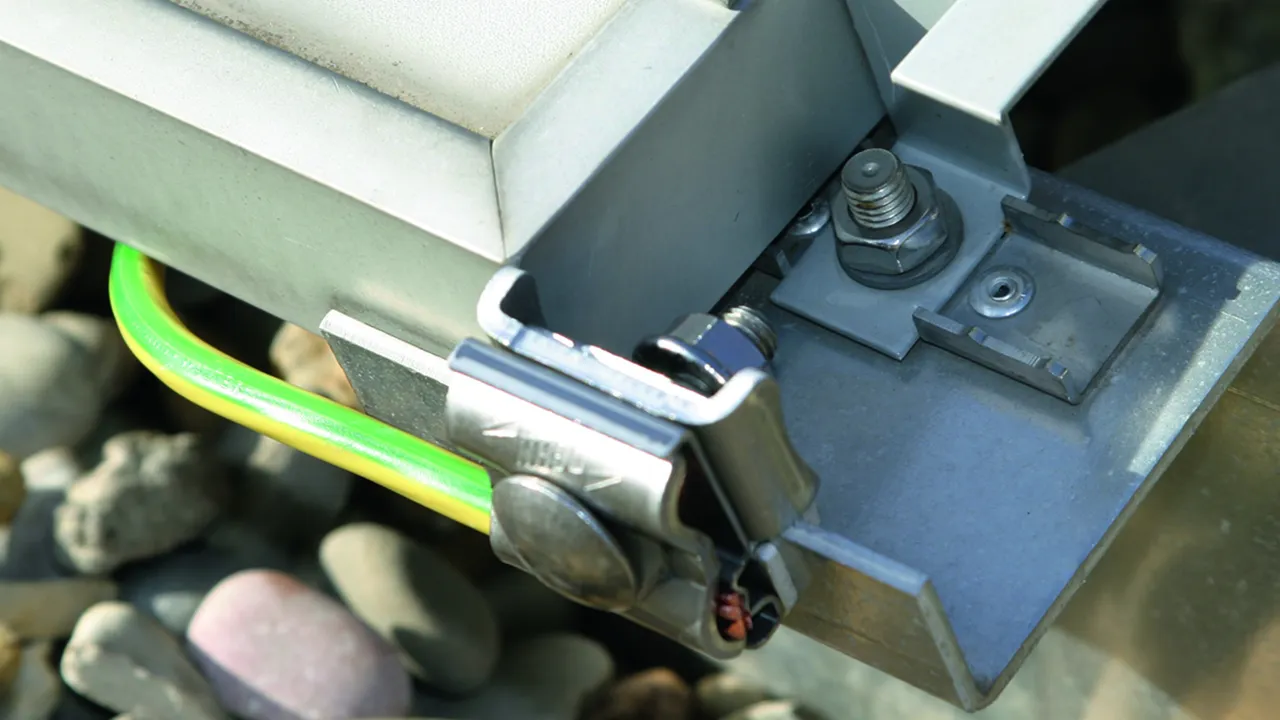

For integrating mounting systems, e.g. of PV installations, in the functional equipotential bonding / functional earthing ( black conductor possible) and lightning equipotential bonding according to IEC/EN 62305-3.
The StSt contact plate (intermediate element) allows different conductor materials (Cu, Al, St/tZn and StSt) to be connected to the normal mounting systems, e.g. to aluminium, without the risk of contact corrosion.
The double clamp design allows easy and quick interconnection of the profiles, e.g. by feed-through wiring.
The StSt contact plate (intermediate element) allows different conductor materials (Cu, Al, St/tZn and StSt) to be connected to the normal mounting systems, e.g. to aluminium, without the risk of contact corrosion.
The double clamp design allows easy and quick interconnection of the profiles, e.g. by feed-through wiring.
Art.-Nr. 365250 UNI FK 8.10 KBF0.7 8 AL V2A
GTIN 4013364148307, Zolltarifnr. (EU): 85359000, Bruttogewicht: 85.00 g, VPE: 50.00 pc(s)
:quality(98)/www.elvatec.ch/store/f/63124965/HDVORSCHAU/365250_064295.jpg)
:quality(98)/www.elvatec.ch/store/f/63124965/HDVORSCHAU/365250_064295.jpg)
:quality(98)/www.elvatec.ch/store/f/63124966/HDVORSCHAU/365250m_D.jpg)
:quality(98)/www.elvatec.ch/store/f/63124966/HDVORSCHAU/365250m_D.jpg)
Technische Daten
| Clamping range of saddle | 0.7-8 mm |
| Material of clamping bracket | Al |
| Clamping range Rd | 8-10 mm |
| Connection (solid / stranded) | 4-50 mm2 |
| Material of double clamp | StSt |
| Standard | EN 62561-1 |
| *) See test certificate for exact classification. | |
